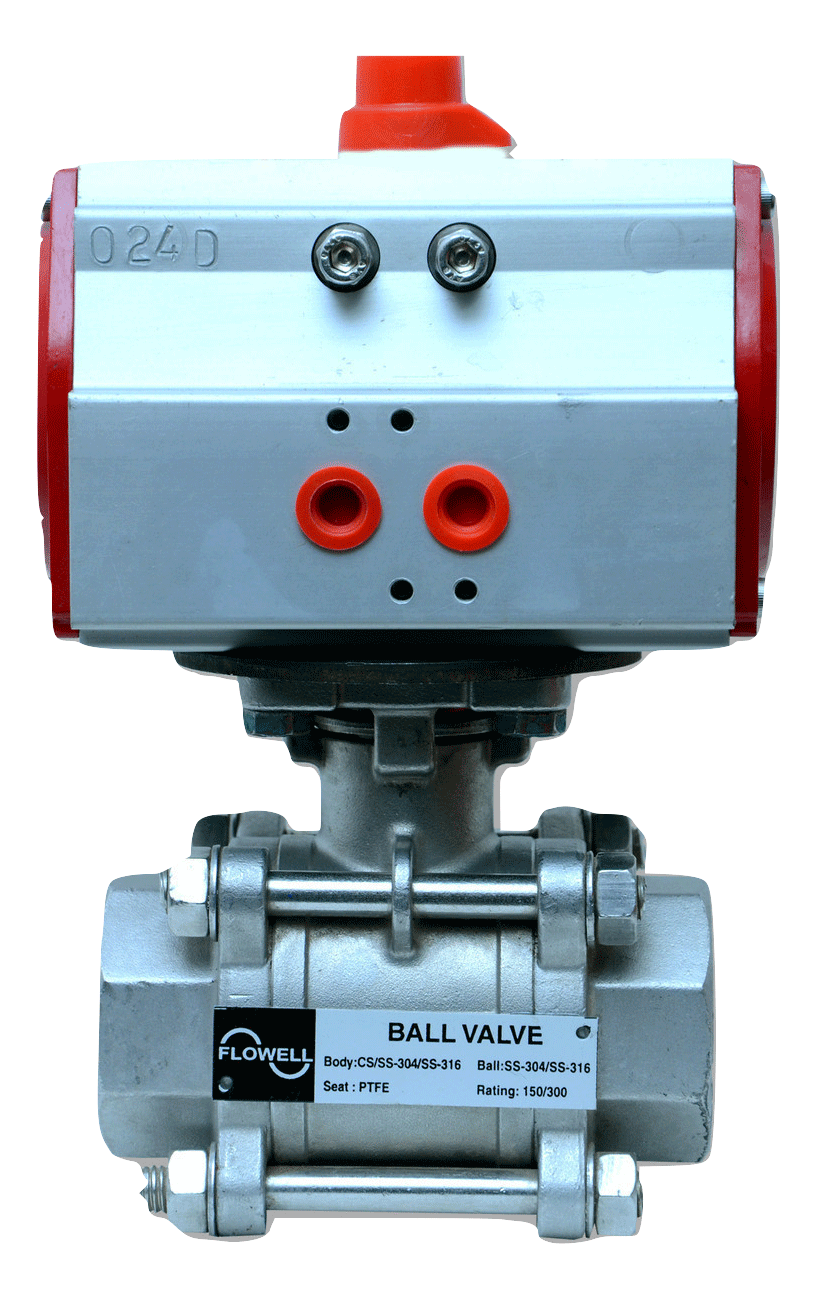

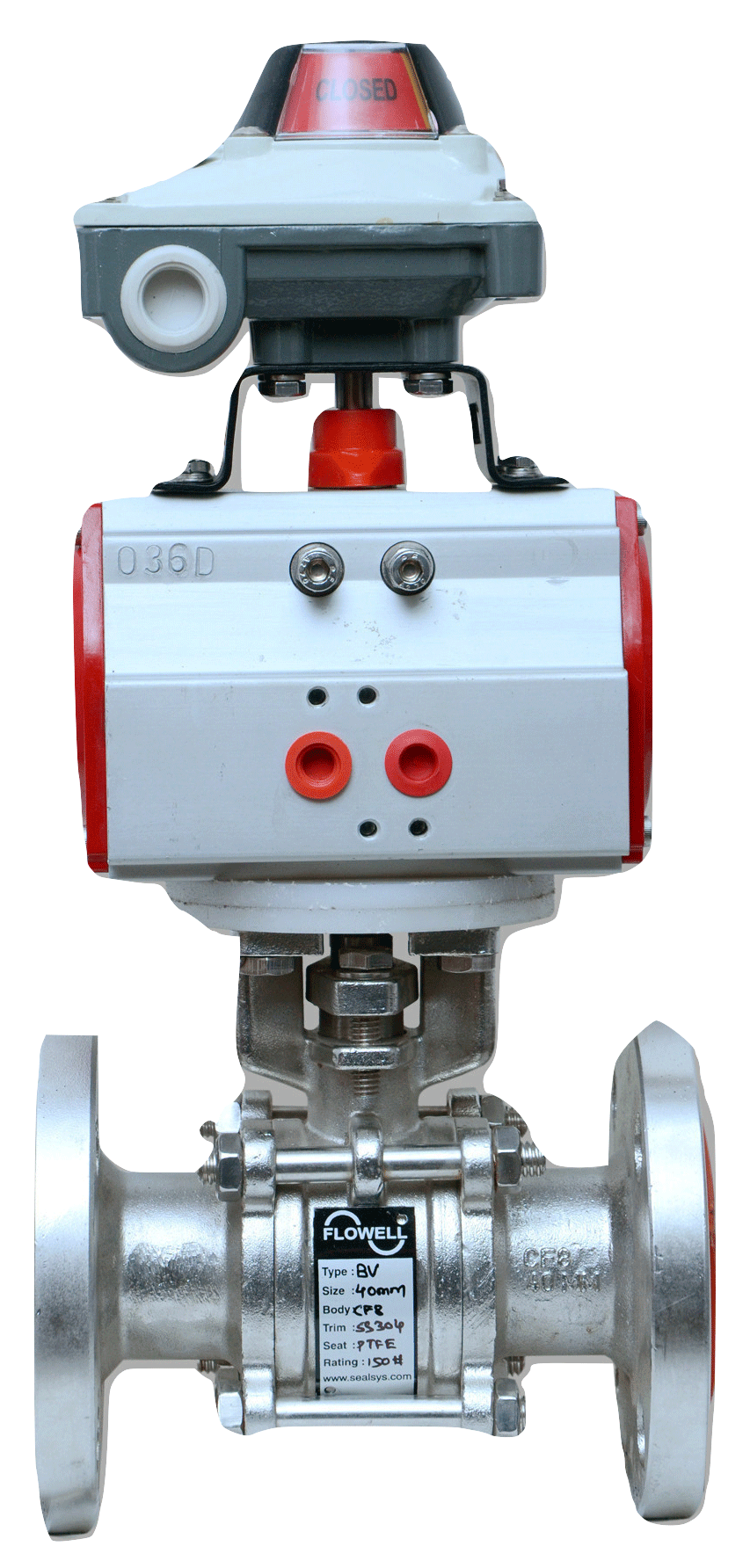

Actuated Ball Valve Screwed / Socket Weld
Flowell Actuated Ball Valve has a three piece design for fast and low cost maintenance. These valves are supplied completely assembled with either single acting (spring return) with fail safe condition or double acting actuators. All valves and actuators are tested and issued with certificate confirming the actuators functionality before despatch.
Different variations available are:

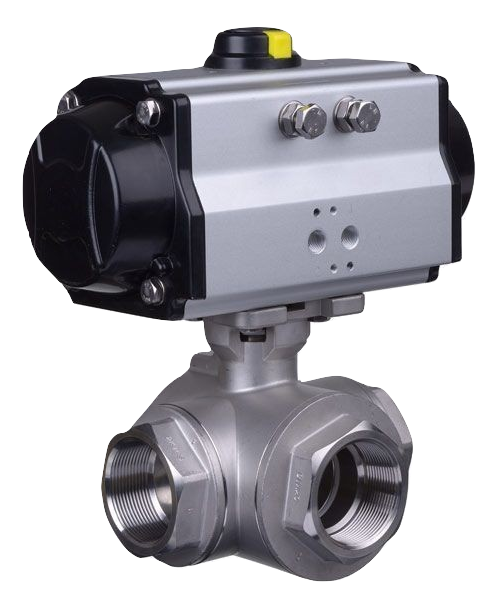

Ball Valve Rotary Actuator Operated
- |

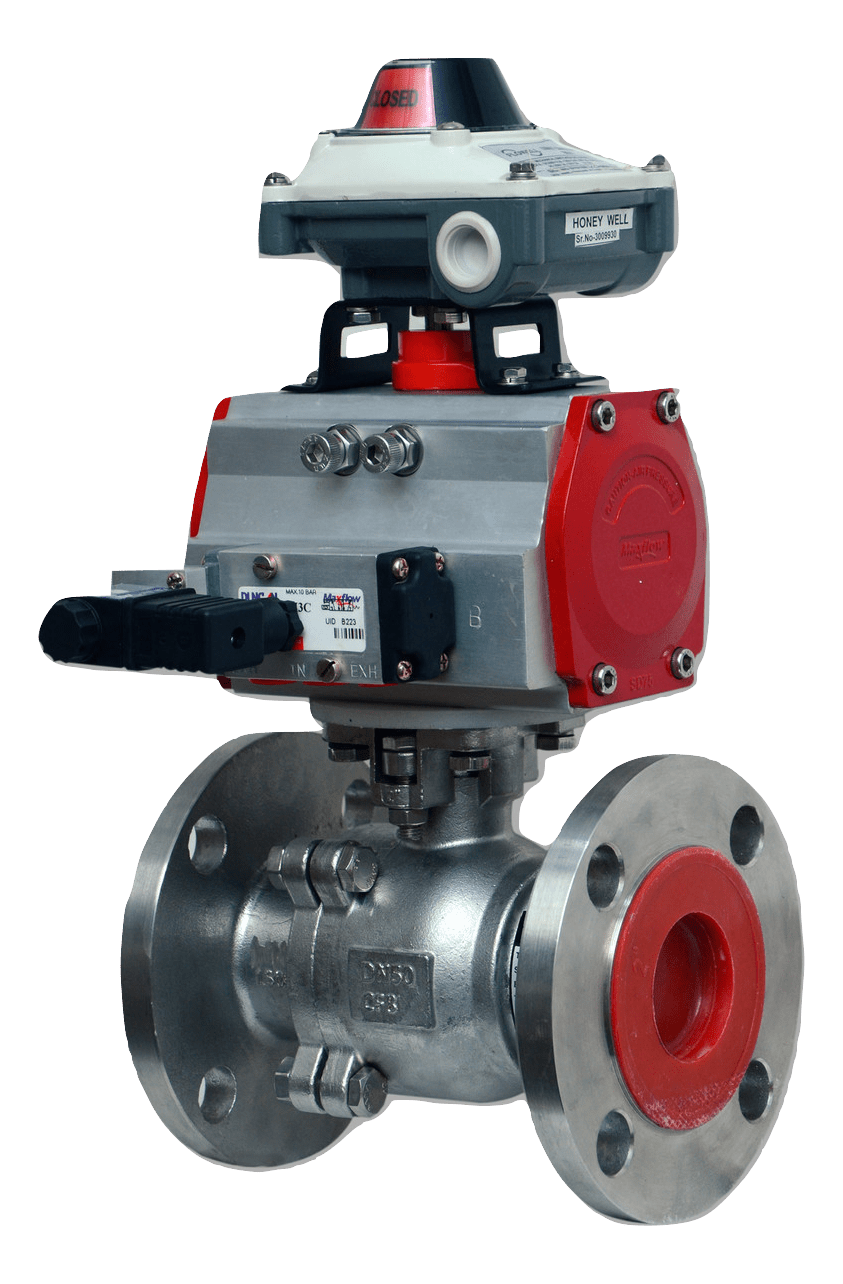

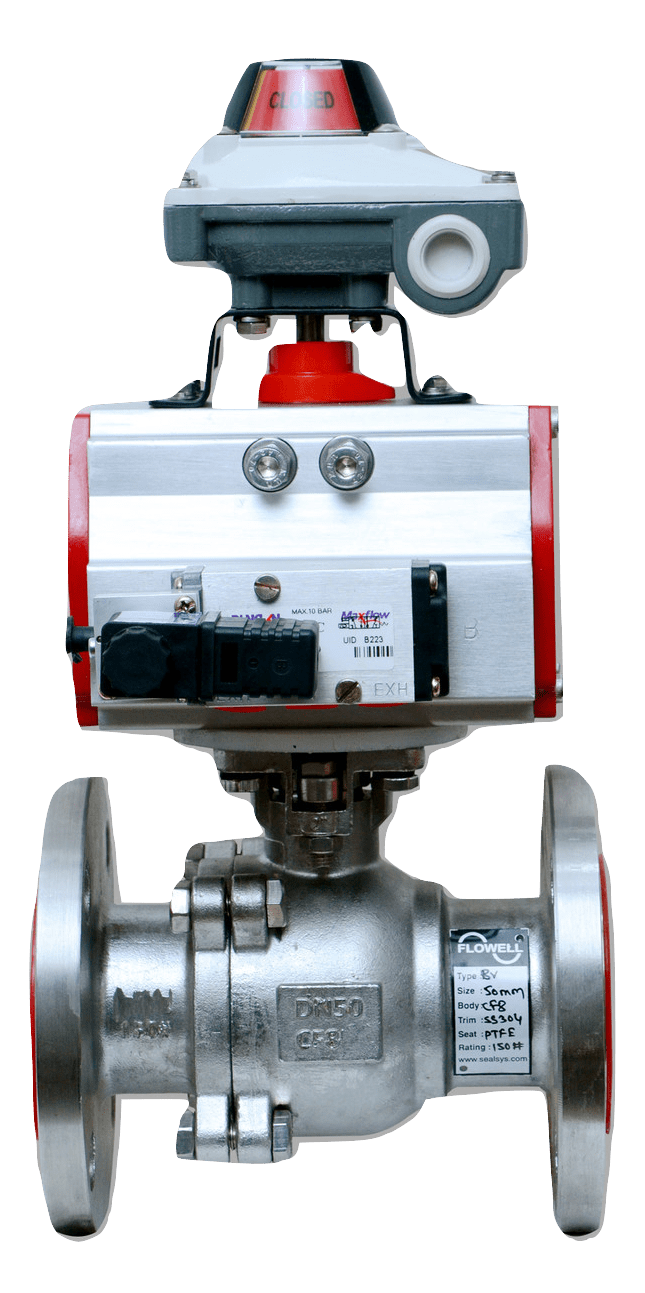

Ball Valve Actuator Operated With Limit Switch
- |
Ball Valve Actuator Operated With Namur Valve
- |
Ball Valve Actuator With Positioner
Pneumatic Actuator Specification |
Double Acting |
Air to Open. Air to Close
Fail Safe : Stay put |
Single Acting |
Air to Open Spring to Close
Fail Safe : Fail to Close |
Actuator Size |
DA 40 to DA 300 |
|
|
Ball Valve Specification |
Design |
Floating Ball. Fire Safe Design (optional) |
Body |
SS-304 / SS- 316 / WCB |
Ball |
SS-304 / SS-316 |
Seat |
PTFE / CFT / GFT |
Leakage Class |
100% Bubble Tight Shut off. Class VI Leakage. |
Valve size |
15NB to 50NB |
Pr. Rating |
PN #16, PN #25, Class #150, Clss #800 |
Mounting |
Screwed Female / Male Ends. Socket / Buttweld Ends |
Accessories |
Solenoid Valve / FRL Unit / Limit Switch / Positioner |
|
